Details
Best performance and comfortable truck in the light duty class you can find. Hino 300 series provide full range of trucks, exclusively fit for every segment in the market.
Professional, Protect and Profit
Strong, Spacious, Safety, Smart
Interior

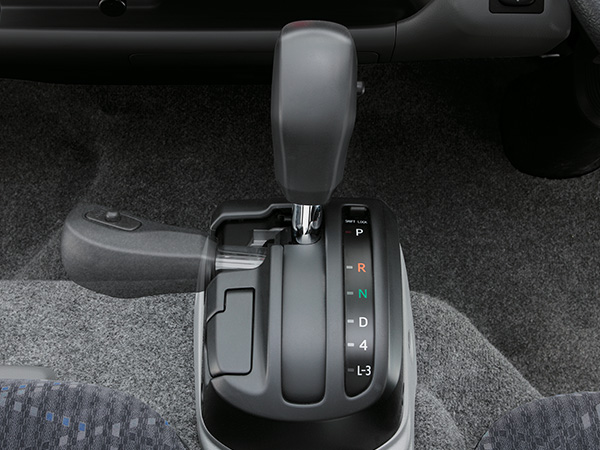

Auto Transmission
Ease of driving and helps to reduce driver fatigue and also improving fuel consumptionand safety.

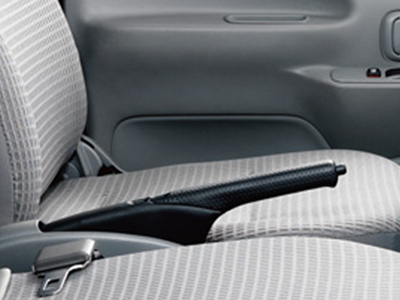

Brake Lever
The shift lever and side lever fold down, making it easy to move around the cabin.

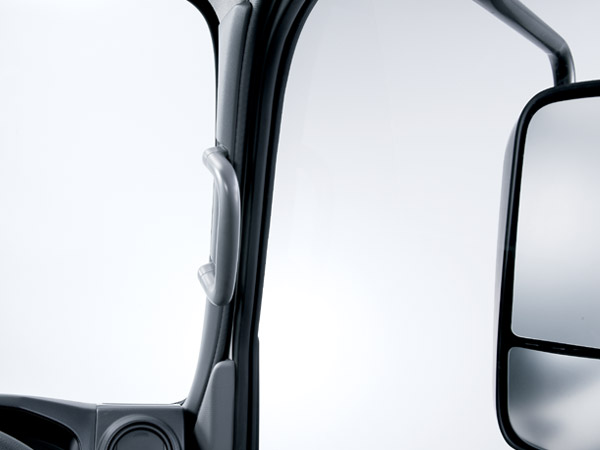

Slim Pillar
The front pillars have been made as thin as possible to ensure a nearly uninterrupted forward view, allowing the driver to easily spot pedestrians and cyclists.

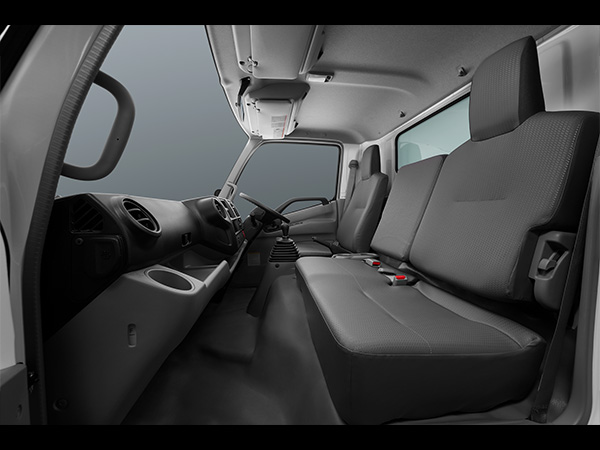

Cab Space
Improved visibility with spacious cab space that enhance driving operation and ample room for three adults

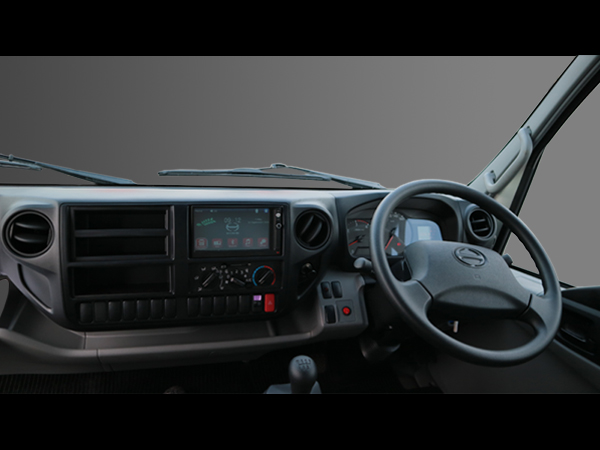

Main Panel

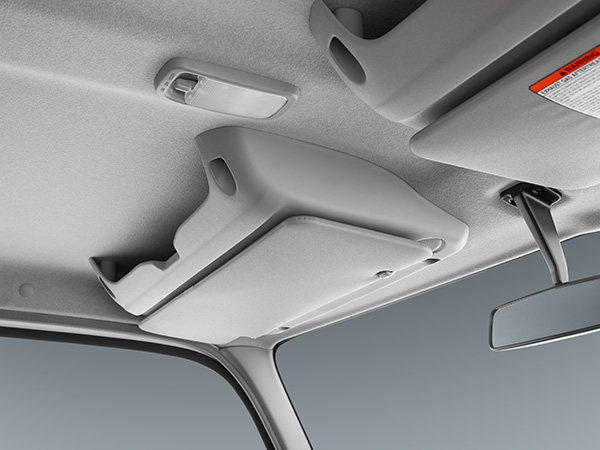

Overhead Console
Open centre section allows easy access.

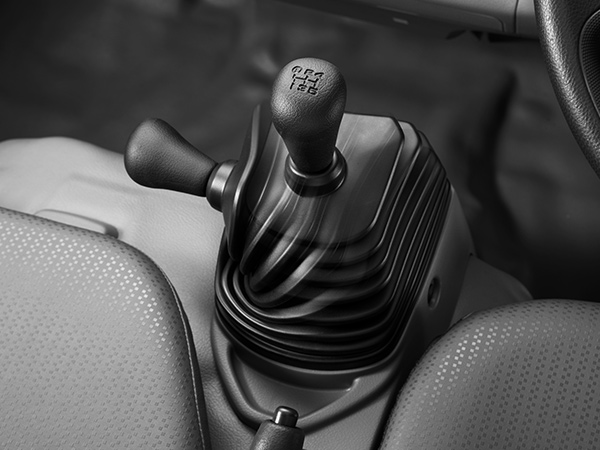

Manual Transmission
Shift and side lever fold down, ease of gear shifting.

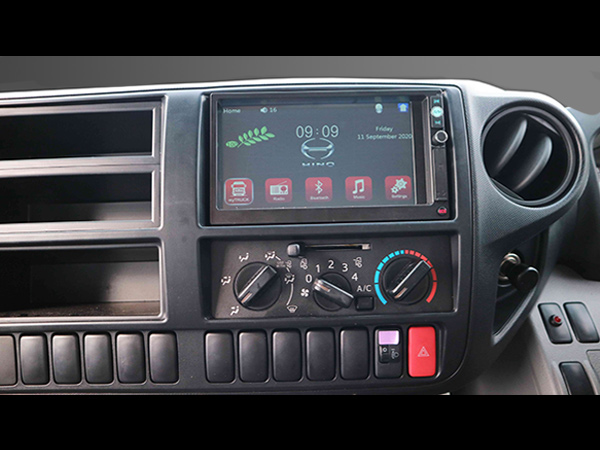

Switch Panel
The layout of the switches is intuitive and easy to use.

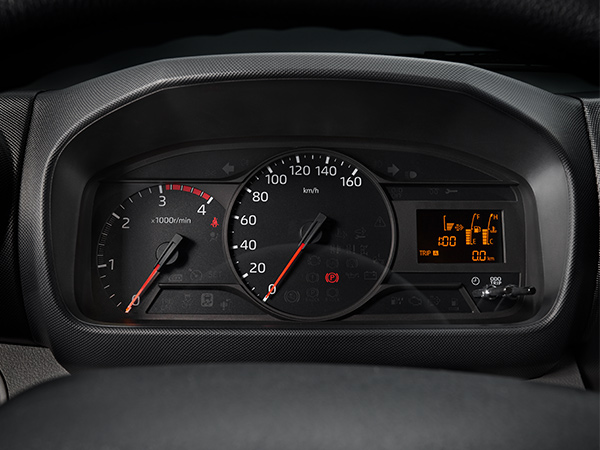

Meter Panel

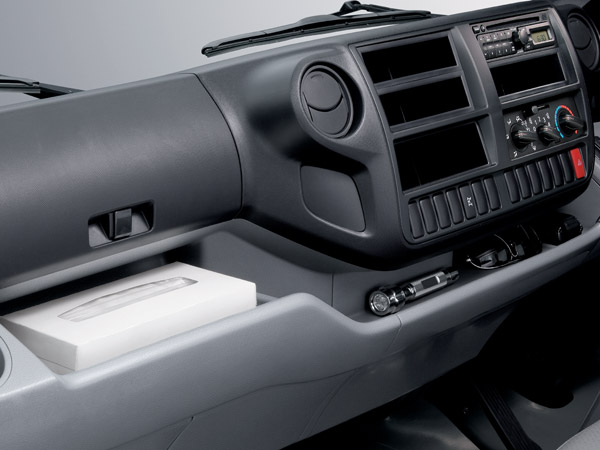

Wide Free Rack

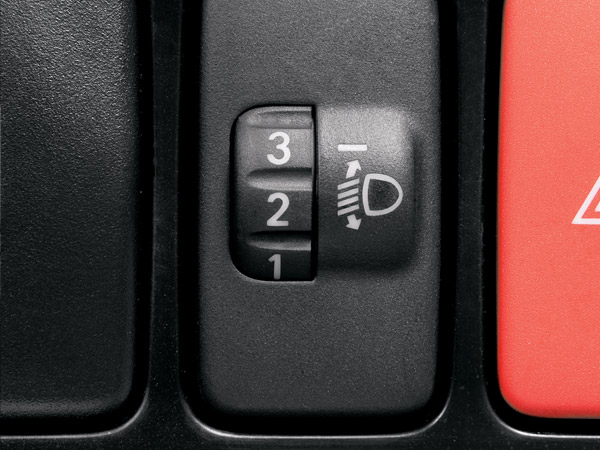

Headlamp Levelling Switch
The Headlamp Levelling Switch is used to adjust the headlamp illumination distance.
Exterior

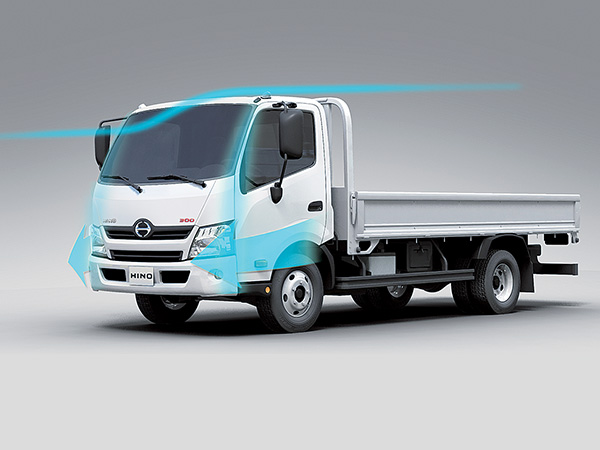

Aerodynamic Cab
The windshield angle and the slanted cab design provide aerodynamic performance, enhancing fuel economy. It takes only a glance to see how the increased rake of the windshield helps air flow over the cab for greater aerodynamic efficiency. Applying a more gentle curve to the corners of the cab allow for class-leading aerodynamic performance.

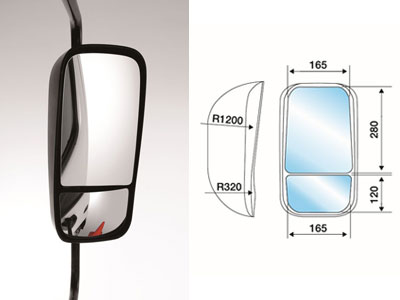

Door Mounted Outer Mirror
The door-mounted outer mirrors features partitioned mirror surfaces encased in an aerodynamic and low-profile shell.

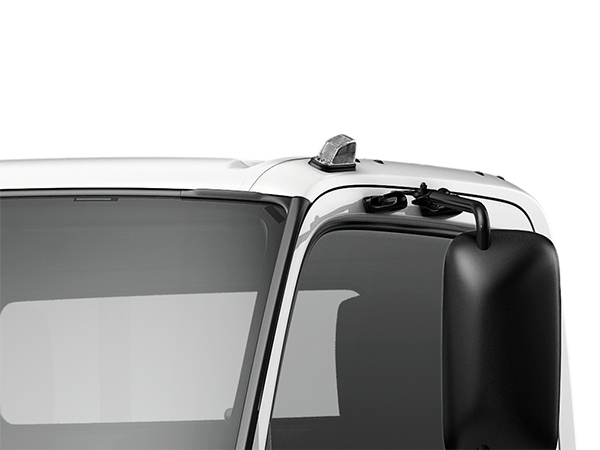

Roof Top Maker
Provide visual cues as to where the end points of the vehicle are.

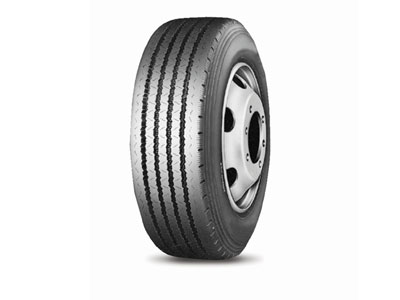

Tubeless Tyre
Hino is the first to launch the LCV with tubeless tyre. (inclusive of spare wheel). More resistant to puncture, better fuel efficiently due to lighter tyre & lower rolling resistance. Longer lifespan due to lower heat generation.

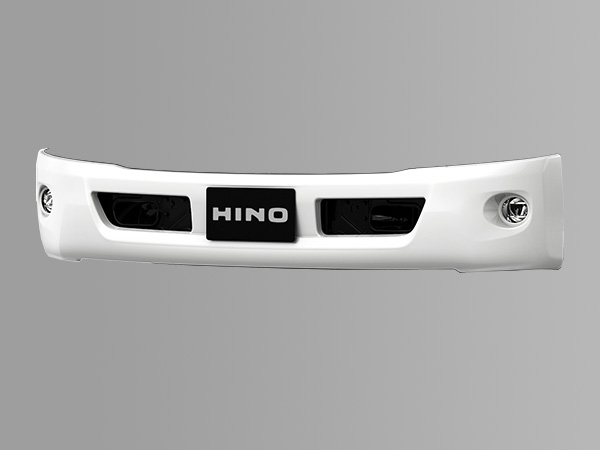

Front Bumper
Redesigned to C-shape with increased strength. Steel thickness changed to 6mm for extra strength. High strength steel is also used for extra strength. Comply with latest regulation.

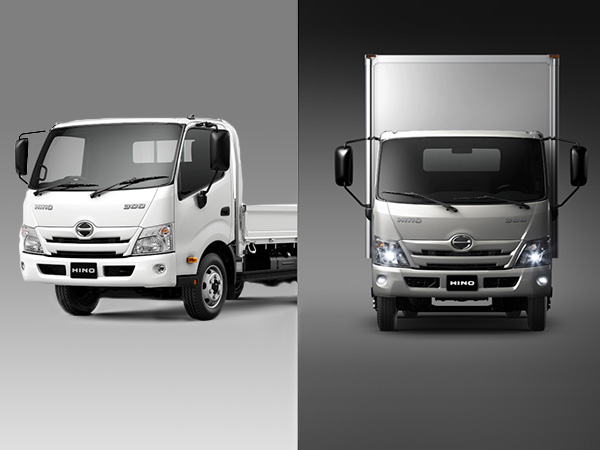

Powerful and Original Presence
Easily identified as a member of the Hino family by the angled character lines running from the grille across the front panel and embedded emblem. Featuring strong, dynamic surfacing that runs from the bumper across the door shoulders.

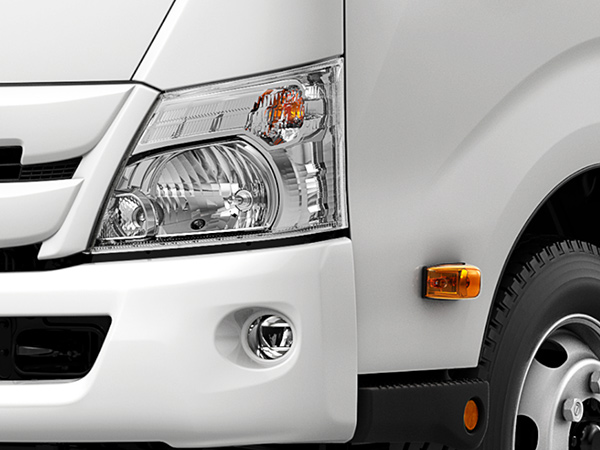

Fender-Mounted Side Maker
Alerts surrounding vehicles and pedestrians of the driver’s intentions.

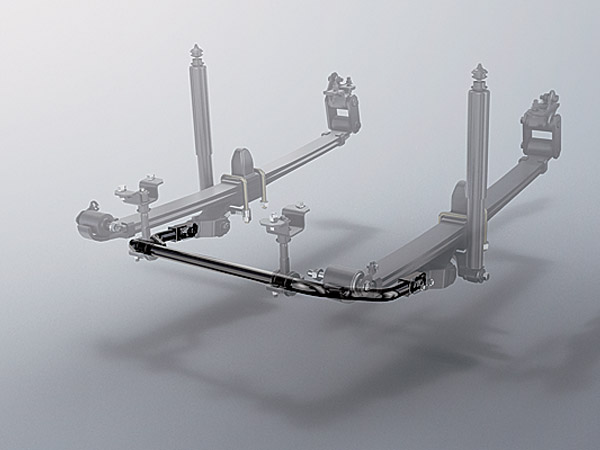

Stabilizer
Safety & Performance
_Seat_Belt.jpg)

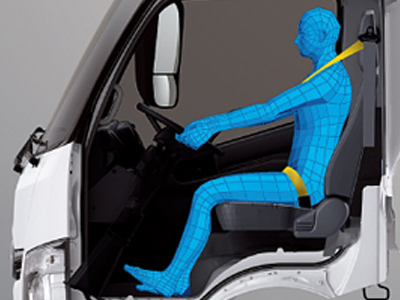

3-Points Emergency Locking Retrator (ELR) Seat Belt
Improved belt restraining performance with instant tension application upon collision for better occupant safety.

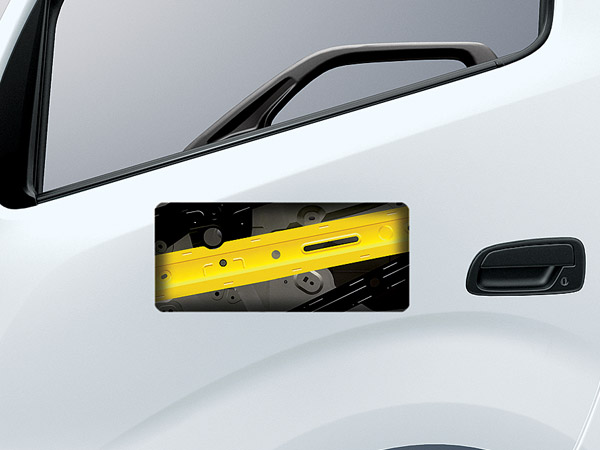

Side Door Beam
High strength steel reinforcements are added in the doors to protect occupants in a side collision.

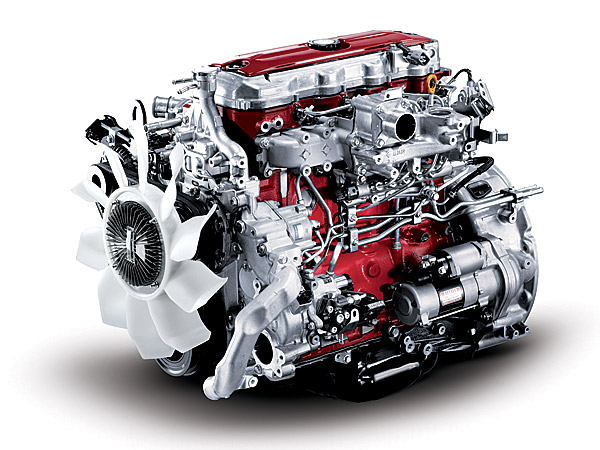

Engine Euro 3
Energy-Absorbing Steering Wheel and Column
The energy-absorbing steering wheel and column reduce collision force.
_Cab.jpg)
Emergency Guard Impact Safety (EGIS) Cab
.jpg)

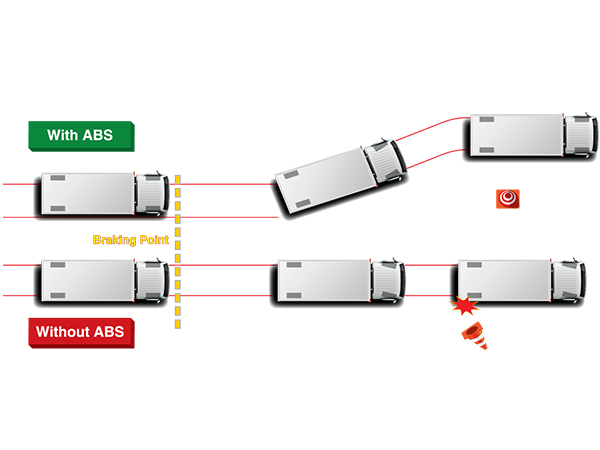

Anti-Lock Braking System (ABS)
ABS helps the driver maintain control of the vehicle when braking on a slippery surface by selectively controlling the braking force of individual wheels in order to prevent the wheels from locking.
Specification
| Performance | |
| Emission Standard | N04C - WG (EURO 3) |
| Engine Type | Diesel, 4-cylinder Vertical In-line, Overhead Valve, Water Cooled |
| Displacement (cc) | 4009 |
| Maximum Output (kW(PS)/rpm) | 104 (141) / 2,500 |
| Maximum Torque (Nm(kgfm)/rpm) | 402 (41) / 1,600 |
| Injection System | Electronic Control Commonrail Type |
| Intake System | Turbo Charged Intercooled, Stack Type |
| Transmission | RE50 / Manual 5-Speed |
| Transmission Type | Five (5) Forward and One (1) Reversed, with Overdrive |
| Ratio (1st - Top) | 5.342 / 0.712 |
| Max Speed (km/h) | 100 (Speed limiter) |
| Gradeability (tan Ø) %) | 55.3 |
| Key Specification | |
| Drive Configuration | 4 x 2 |
| Wheelbase (mm) | 2525 |
| GVW/GCW (kg) | 5000 |
| Maximum Output (kW(PS)/rpm) | 104 (141) / 2,500 |
| Maximum Torque (Nm(kgfm)/rpm) | 402 (41) / 1,600 |
| Wheels & Supensions | |
| Number of Wheel | Five (5) [ Including One (1) Spare Tire ] |
| Wheel Type | 5 Stud Disc Wheel |
| Tire Size | 205/85 R16 |
| Wheel Size | 16 x 5.50F |
| Service Brake Type | Hydraulic System with Ventilated Disc for Front Wheels and Dual Two (2) Leading Shoes For Rear Wheels |
| Service Brake Control | Vacuum Servo Hydraulic, dual circuits and Anti-lock Braking System (ABS) |
| Parking Brake | Mechanical, Internal Expanding, Acting on Transmission Output Shaft |
| Exhaust Brake Type | Electric - Vacuum Actuator with Valve in Exhaust Pipe |
| Auxiliary Brake | Exhaust Brake |
| Front Suspension | Semi Elliptic Leaf Spring with Dual Acting Shock Absorber and Stabilizer |
| Rear Suspension 1 | Semi Elliptic Leaf Spring with Dual Acting Shock Absorber |
| Weight & Capacity | |
| GVW/GCW (kg) | 5000 |
| Chassis Mass Front (kg) | 1400 |
| Chassis Mass Rear (kg) | 660 |
| Chassis Mass Total (kg) | 2060 |
| Seating Capacity | 3 |
| Tank Capacity (l) | 80 |
| Chassis Dimension | |
| Wheelbase (mm) | 2525 |
| Overall Length (mm) | 4680 |
| Overall Width(mm) | 1695 |
| Overall Height (mm) | 2130 |
| Cab to Axle Centre (mm) | 1945 |
| Front Overhang (mm) | 985 |
| Rear Overhang (mm) | 1135 |
| Road Clearance (mm) | 200 |
| Front Tread (mm) | 1440 |
| Rear Tread (mm) | 1390 |
| Turning Radius (on tire) | 5500 |
